DP12 Essenlite Auto Micro Needle Derma Pen

Essenlite derma pen is produced via ISO13485, tested by SGS,with test reports inside the package as medical device.Colors for option, same as the needle cartridge
Online consultation
Click Refresh Verification Code

description



Derma pen is a electric device in form of a pen that allows the technique of micro needling, which uses the sharp needle to penetrate into the deep level skin, to stimulate the release of growth factors, cause the production of collagen and elastin.



High quality country

1. Produce according to ISO13485

2. Product  tested by SGS with report, IEC60601-1k    IEC60601-1-11c    IEC60601-1-2:2007    IEC60601-1-6h

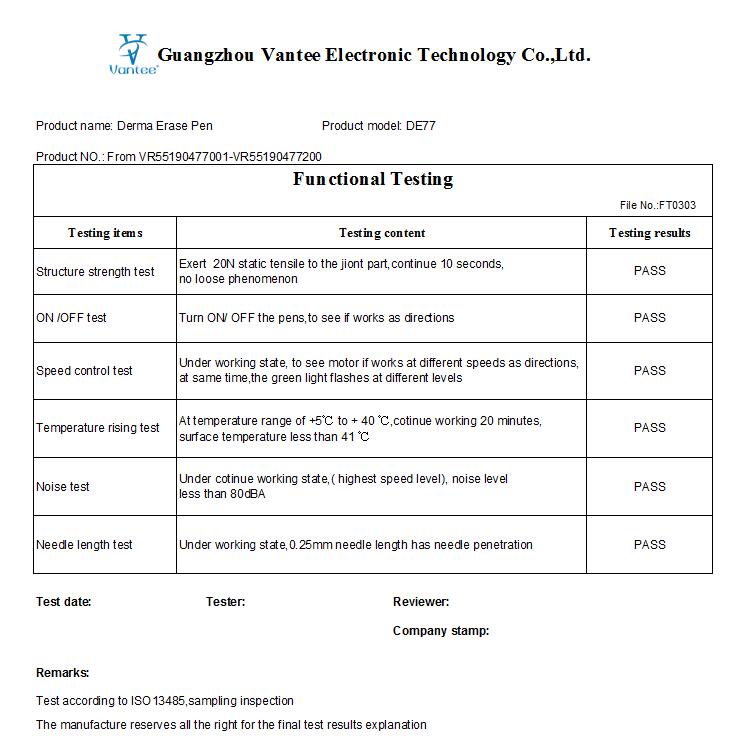

3. Out going quality inspection(Functional tests, High voltage insulation tests, Leakage current tests )

4. Advanced package design

5. Each pen with unique S/N to track

6. Adaptor approved by UL /FCC tests


Needle length depth adjustable (0.25mm-3.0mm)

1.  Adjust the needle length by the adjustment ring

2.  Turning clockwise, needle length will be longer, counter clockwise, it will be shorter.



6 speed level control

1.   When turn on the power, speed starts from the lowest to the highest, cycles from low level to high level.

2.  Each needle length with two kinds of speed option for operation.

3.  Green light flash speed indicates the different speed option.


DEPTH

SPEED

Under 0.5mm

1-2

0.5~1.0mm

2-3

1.0~1.5mm

3-4

1.5~2.0mm

4-5

2.0~3.0mm

5-6











Needle cartridges

1.  9/12/24/36/42 nano for option

2.  Anti flow back design

3.  Sterilization by EO gas

4.  Medical grade sealed package

5.  With sterilization report according to ISO11135




Product name

Essenlite derma pen

Input & Output

AC110V~240V    ;DC5V,1000mA

IP

IP22

Fireproof endurance rating

V0

Motor Insulation Level

Class E

Needles

9/12/36/42 / nano needles for option

Needle length

0.25mm--3mm Adjustable

Motor speed

6000-12000 RPM

Speed control

6 Level

Type part

BF applied parts

Needles material

Titanium/ Stainless steel

Weight

Main body 56g

Size

157*30(mm)

Package

18.5*17*5cm/PC. GW: 480g
